Monday, 30 August 2010
The rolling chasis
Just a couple of nice shots of the rolling chasis so far. Not complete by any means but getting there!
Attaching the starter motor
The started motor and soleniod attached to the gear box.
Painted with kurust and some left over matt black heat resistant paint.
Painted with kurust and some left over matt black heat resistant paint.
Cleaning the steering column
I had left the steering column intact when removing it. It was in good condition with only minor surface rust. The part shown below however, was open to the element and had a lot of surface rust. It was still structurely sound.
As you can see, I had left the screws and fittings attached. Where necessary these where taped in place. If only I had done this more often when taking her apart!
The surface nearst the camera remained pitted where the rust had attacked it. Should there have been some kind of plastic boot covering the holey section? I'm unsure but it would certainlt help to keep away the dirt = wet = rust!
As you can see, I had left the screws and fittings attached. Where necessary these where taped in place. If only I had done this more often when taking her apart!
The surface nearst the camera remained pitted where the rust had attacked it. Should there have been some kind of plastic boot covering the holey section? I'm unsure but it would certainlt help to keep away the dirt = wet = rust!
Oil cooler

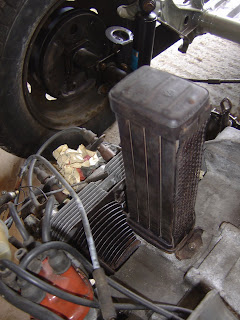

Got this oil cooler, second hand from ebay. Seems to only have surface rust and at £5 + P&P was a lot cheaper than they sell in the shops!
As you can see in the picture above, I soaked internal chamber in white spirit for a couple of days. Then agitated it and found the left over rubber washer to the right of the holes.
When I took it apart, I placed newspaper in the corresponding holes on the engine block.
As you can see in the picture above, I soaked internal chamber in white spirit for a couple of days. Then agitated it and found the left over rubber washer to the right of the holes.
When I took it apart, I placed newspaper in the corresponding holes on the engine block.
Cleaning up the clutch
The gear box ready for the engine.
The exterior of the clutch plate is in need of a de-rusting.
The fly wheel locking tool.
Can't find any pics of it finished but I can say that I removed the fly wheel and had a bit of a puzzle to work out how it went back.
I have a flywheel locking tool that allowed the 6 bolts to be removed. There is a clutch/ friction plate behind this that is held in place by friction.
When I replaced it all and tried to fit the engine to the gearbox, I found the friction plate had to be centered exactly in order that the engine fits easily. In the bug me video they recommend getting either a tool or the center piece from the gearbox (see top picture). I found it worked just as well to lightly tighten the bolts. Fit the engine, thus centering the friction plate. Remove the engine and then tighten the bolts.
The exterior of the clutch plate is in need of a de-rusting.
The fly wheel locking tool.
Can't find any pics of it finished but I can say that I removed the fly wheel and had a bit of a puzzle to work out how it went back.
I have a flywheel locking tool that allowed the 6 bolts to be removed. There is a clutch/ friction plate behind this that is held in place by friction.
When I replaced it all and tried to fit the engine to the gearbox, I found the friction plate had to be centered exactly in order that the engine fits easily. In the bug me video they recommend getting either a tool or the center piece from the gearbox (see top picture). I found it worked just as well to lightly tighten the bolts. Fit the engine, thus centering the friction plate. Remove the engine and then tighten the bolts.
